FizZim – an open-source FSM design environment
Paul Zimmer
Zimmer Design Services
Michael Zimmer
Zimmer Design Services
(and University of California, Santa Barbara)
Brian Zimmer
Zimmer Design Services
(and University of California, Davis)
Zimmer Design Services
1375 Sun Tree Drive
Roseville, CA 95661
paulzimmer@zimmerdesignservices.com
website: www.zimmerdesignservices.com
ABSTRACT
Finite State Machine design is a common task for ASIC designer engineers. Many designers would prefer to design FSM’s in a gui-based environment, but for various reasons no commercial tool for this task has really achieved wide-spread acceptance. The authors have written such a graphical FSM design tool, and offer it to the engineering community for free under the GNU public license. The gui is written in Java for portability, while the back-end code generation is written in Perl to allow for easy modification. The paper will describe the basic operation of the tool and the format of the Verilog it produces, then go on to describe some of the more advanced features and how they affect the Verilog output.
Table of contents
1 Introduction - What is fizzim?
5.1 Highly Encoded with Registered Outputs as Statebits (HEROS)
6.3.2 Individual State Attributes
6.3.3 Individual Transition Attributes
6.7 (Un)Displaying the attributes table
7.1 Mealy outputs assigned in states
7.2 Mealy outputs assigned on transitions
9.2 The special case of equation equal to “1”.
12 Bringing out internal signals
12.1 Renaming internal signals
13 Inserting random bits of code at strategic places
17.1 With registered outputs as datapath bits
17.2 With registered outputs assigned to state bits
18 Controlling and suppressing warning messages
19 Printing and exporting the state diagram
20 Specifying the fizzim.pl options
22 Future directions / wishlist
1 Introduction - What is fizzim?
Finite State Machines come up frequently in digital design. Sometimes designers code them directly in Verilog, but many designers prefer to design their FSMs as a state diagram (“bubbles and arrows”) and then manually translate this diagram into Verilog.
For these designers, it would certainly be handy to design the FSM directly in a graphical tool and allow the software to generate the Verilog code. There have been several attempts by various EDA companies, large and small, to provide such a tool, but nothing has really gotten much traction.
This may be because the tool is in a strange niche. It is really too small to support business on an EDA scale, but it is too large for a “G-job”. Also, the graphical part of the G-job is outside the usual experience of hardware designers.
So, it seems a good candidate for an open source project, provided someone is willing to tackle that nasty graphical part.
Someone has! Paul Zimmer and his young interns at Zimmer Design Services, Mike Zimmer and Brian Zimmer, are proud to present fizzim – an open-source, graphical FSM design environment.
Throughout this tutorial, it is assumed that the reader is familiar with FSM’s and common FSM-related terms (such as Moore and Mealy). If the reader is unfamiliar with some of this material, just read through some of the papers in the “references” section.
2 Starting fizzim
The fizzim gui is written in java. It is distributed as a “.jar” (java archive) file. We run it using Sun Java Runtime Environment. Odds are that you already have this loaded for your browser, but if not you can download it from java.sun.com.
2.1 Windows
On most Windows machine, Java Runtime Environment will already be registered as the correct app for “.jar” files, so just double-clicking on the file should start it. If that doesn’t work, you can start a terminal window and use the command-line approach as in Linux below.
2.2 Linux
On linux, try right-clicking the file and select “open using”. If java runtime is listed, you’re in business. You can also run from the command line using:
java –jar fizzim.jar
3 GUI basics
The gui is pretty intuitive. Right-click in open space gives you a menu to create new states and transitions. Right-click on an object gives you a menu to edit the object. Double (left) click on an object will bring up the properties menu for that object.
Edit>undo or ctl-Z will undo, Edit>redo or ctl-Y will redo. Undo/redo is unlimited.
4 Attributes
It is our belief that few hardware engineers will want to touch the gui, but many will want to modify the Verilog output. In recognition of this, every attempt has been made to try to keep the gui as independent of the Verilog generation as possible.
To accomplish this, virtually everything is implemented as “attributes”. This should allow new backend (Verilog-generation) features to be added without touching the gui. Also, while the gui is written in Java, the backend is in the lingu-franca of EDA – perl.
There are only 3 types of objects to the gui – the state machine itself, states, and transitions. Each of these can have attributes assigned to it. But state and transition object attributes have to be defined first in the global “states” and “transitions” attribute menus before they will be available in individual states and transitions. The gui knows about a few special attributes, but only those that require that the display be modified. Examples include transition equations (drop the “equation =” on the visible text) and output types (use “=” for combinational and “<=” for registered).
Inputs and outputs are just attributes. The name field is the name of the input or output signal.
Each attribute has 5 fields:
- Attribute Name – this is the name of the input or output, or the name of the special attribute.
- Default Value – Default value of the attribute. Will be used if no value is assigned in a state/transition.
- Visibility – Turns on/off visibility on the display. “Only non-default” means to only show the attribute if its value doesn’t match “Default Value”.
- Type – Information about the attribute. Inputs currently have no defined type, outputs can be “reg”, “regdp”, or “comb”. Others are attribute-specific.
- Comment – An optional comment that will show up on the diagram, in the Verilog, both, or neither (see the section on comments).
- Color – Text color.
5 Encodings
There are two primary types of state encodings used for FSM design. Highly encoded FSM’s use a dense binary code and few flops but can sometimes have very complex combinational logic. One-hot FSM encodings, on the other hand, use a sparse code and many flops, but usually have much simpler combinational logic. There are many papers on the advantages and disadvantages of each (reference [2] is one example).
The backend perl script (fizzim.pl) supports both of these encodings.
5.1 Highly Encoded with Registered Outputs as Statebits (HEROS)
Heros is an encoding that uses a dense binary code. As the name implies, registered outputs will be encoded into the states to minimize flop count. There are mechanisms (discussed below) to allow particular outputs to be excluded from the state vector. The actual Verilog format is based on recommendations from Cliff Cummings’ paper (reference [3]).
5.2 One Hot
One-hot encoding is also supported. The Verilog format is based on Steve Golson’s paper (reference [2]). Some features, such as gray coded transitions, are not available with one-hot encoding.
6 Cliff’s Classic
Let’s jump right in with an example. In [3], Cliff Cummings introduced the following basic state machine:
Here’s how we would create this in fizzim.
6.1 Creating the states
Right-clicking in open space gives the following menu:
We select “New State” and get this:
Change the state name to “IDLE” and hit “OK”.
Repeat this to add the other three states. Left-click and drag to move the states around.
6.2 Creating the transitions
To create the state transitions, we can either right-click in open space and select “New State Transition” and get the full menu:
Or we can right-click on the start state and select “Add State Transition to”:
We repeat this to add all the transitions. Don’t forget to add the loopback transition. We’ll see why this matters in a moment.
Notice that when we add the transition from DLY back to READ, we get something like this:
That doesn’t look so great, so we need to move one of the transitions. To do this, left-click to select it. Endpoints and anchorpoints appear:
Drag the endpoints to a new location, then drag the anchorpoints to reshape the curve. The anchorpoints on the ends of the arc control where the arc intersects the state bubble. The other two control the shape of the curve.
If you move a state bubble, the attached arcs will move with it. As long as the move isn’t too drastic, the anchorpoint modifications you made will be retained. If you move the state a lot, the anchorpoints may get reset. This works better than it sounds. Mostly your anchorpoints are retained when it makes sense.
All text, including the transition equation (the “1” above), output values in states, state names, and free text, can be moved by just selecting it and moving it.
Don’t forget to add the loopback transition. We’ll see why this matters in a moment.
6.3 Filling in the details
6.3.1 Global Attributes
Recall that everything is stored as attributes – either attributes on the FSM itself or attributes on individual states and transitions. So, adding inputs, outputs, transition equations, etc is a matter of editing attributes.
Let’s start with the global FSM attributes. It is necessary to start here, because the individual state and transition attributes won’t appear until they are entered as global attributes.
Select “Global Attributes > State Machine” from the top menu:
And you get this:

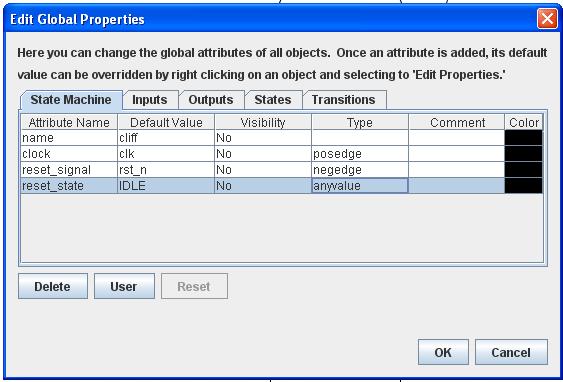

Edit the fields to fill in the module name “cliff”, the clock name “clk”, and make it a posedge clk.
Click the “Reset” button, and two more attributes appear. One is “reset_signal”. Change this to “rst_n”, negedge. Set “reset_state” to IDLE via the pull-down menu and set its type to “anyvalue” (“allzeros” and “allones” will force the reset state to be all zeros or all ones, but this isn’t compatible with onehot encoding, so we won’t use it on this example).
Hit OK. Notice that IDLE now has a double ring to indicate it is the reset state.
Now select “Global Attributes > Inputs” from the top menu.
Use the “Input” button to add the inputs:
Note that “type” doesn’t matter for inputs. We could click OK, then reselect “Global Attributes > Outputs” from the top menu, or we can just switch to the “Outputs” tab without exiting the menu.
Click “Output” twice to add the two outputs, “rd” and “ds”. Their type field should be “reg”. Set “Default Value” to 0, and visibility “Yes”.
This will become clearer later, but type “reg” means that they are registered outputs (Moore) and that they should be encoded as state bits.
Now flip over to the “States” tab. “rd” and “ds” now appear as state attributes. This means you will be able to assign particular values to them in particular states.
Flip over to the “Transitions” tab. “rd” and “ds” do NOT appear here, because it makes no sense to define registered outputs on a transition. The standard attribute “equation” DOES appear here, with the default value of “1”. Leave it alone. But you can change the “Visibility” field to “Only non-default” to make the “1” equations not show up on the diagram.
6.3.2 Individual State Attributes
Now we can enter the output values into the states. Notice that the outputs now appear on the states with a “<=” after them. This indicates registered outputs (“=” means combinational).
Now we need to enter the non-default values for rd and ds. Right-click on the READ state and select “Edit State Properties” to bring up the menu. Or just double-click the READ state bubble. Change the value of rd to “1”.
Do this for the other states to add appropriate output values (rd = 1 in DLY, ds = 1 in DONE).
6.3.3 Individual Transition Attributes
Double-click on the IDLE to READ transition to bring up the transition menu. Change the equation to “go”.
Hit “OK”. Now click on the “go” text and move it:
Repeat this for the state transition from DLY back to READ that has an equation of “ws”.
Our final state diagram looks like this.
You might have noticed that I did not put an explicit “!go” on the IDLE loopback transition, nor an explicit “!ws” on the DLY to DONE transition. That is because fizzim understands that a transition with an equation of “1” is the default, lowest priority, transition. This will be explained in the section on transition priorities. You can add the explicit equations, but you don’t have to.
6.4 Output using heros
Now we can run the backend and generate code:
fizzim.pl < cliff.fzm > cliff.v
The default encoding is heros. Take a look at the output.
It is structured as two “always” blocks per [2]. The first one is combinational and does the next state determination, and the second is sequential and just infers the flops. See [2] for an explanation of why this is the preferred implementation.
Let’s look at the output code in detail.
First, the module statement:
module cliff
(
output wire ds,
output wire rd,
input wire clk,
input wire go,
input wire rst_n,
input wire ws );
Nothing special there, except that it uses the Verilog 2001 format.
Now look at the state encoding:
// state bits
parameter
IDLE = 3'b000, // extra=0 rd=0
ds=0
DLY = 3'b010, // extra=0 rd=1
ds=0
DONE = 3'b001, // extra=0 rd=0
ds=1
READ = 3'b110; // extra=1 rd=1
ds=0
reg [2:0] state;
reg [2:0] nextstate;
Recall that the heros format uses registered outputs as state bits. Fizzim.pl has assigned state bit 0 to “ds”, and state bit 1 to ‘rd”. There are only four states, but DLY and READ both have state[1:0] equal to 01, because they have identical values of “ds” and “rd”. fizzim.pl recognizes this, and adds an “extra” bit to distinguish these states. Thus, we end up with 3 state bits to cover 4 states, but since the registered outputs are encoded in the states, we still have fewer flops overall. It is possible to force fizzim.pl to pull the output bits out of the state vector by changing their type to “regdp”. See the section on datapath outputs below.
Also note that the IDLE state ended up as all zeros. In the absence of a requirement that would prevent this, fizzim.pl heros encoding will favor the reset state as all zeros.
Next comes the combinational always block:
// comb always block
always @* begin
// Warning: Neither
implied_loopback nor default_state_is_x attribute is set on state machine -
this could result in latches being inferred
case (state)
IDLE: begin
if (go) begin
nextstate = READ;
end
else begin
nextstate = IDLE;
end
end
DLY: begin
if (ws) begin
nextstate = READ;
end
else begin
nextstate = DONE;
end
end
DONE: begin
begin
nextstate = IDLE;
end
end
READ: begin
begin
nextstate = DLY;
end
end
endcase
end
Pretty straightforward, and just what you would probably write if you were coding this by hand. There’s a big case statement on “state”, and the inputs (go and ws) determine “nextstate”. But notice the warning message.
// Warning: Neither implied_loopback nor default_state_is_x attribute is set on state machine - this could result in latches being inferred
We have come to a philosophical fork in the road.
Some people, including Cliff Cummings, like to make the default value of the nextstate vector equal to “X” before executing the “case” statement. This ensures that bad things will happen in simulation if the case statement is wrong, but it also means that all loopback conditions need to be entered explicitly.
Other people prefer to make nextstate equal to current state before executing the case statement. This means that the default action is loopback, so no explicit loopbacks are required.
Fizzim.pl is philosophically neutral on this (and most other such issues), so you can choose which way you want it. This is done by setting an attribute on the FSM – either “default_state_is_x” or “implied_loopback”.
Since this is Cliff’s state machine, we’ll do it Cliff’s way. Select “Global Attributes > State Machine” and click the “User” button. Enter the attribute name “default_state_is_x” and give it a value of “1”:
Save the file and re-run fizzim.pl. The warning message goes away and the combinational block starts like this:
// comb always block
always @* begin
nextstate = 3'bxxx; // default to x because default_state_is_x is set
case (state)
IDLE: begin
By the way, if we had used “implied_loopback” (create attribute “implied_loopback” and set it to 1), the output would have looked like this:
// comb always block
always @* begin
nextstate = state; // default to
hold value because implied_loopback is set
case (state)
IDLE: begin
Continuing with our tour of the heros output, we next have the code that assigns the outputs to state bits:
// Assign reg'd outputs to state bits
assign ds = state[0];
assign rd = state[1];
Then the sequential always block. Recall that we set the “reset_signal” attribute to “rst_n” and it’s type as “negedge”. The “reset_state” was set to “IDLE”:
// sequential always block
always @(posedge clk
or negedge rst_n) begin
if (!rst_n)
state <= IDLE;
else
state <= nextstate;
end
If we had instead chosen the type as “negative”, we would have gotten an active-low synchronous reset:
// sequential always block
always @(posedge clk) begin
if (!rst_n)
state <= IDLE;
else
state <= nextstate;
end
The final bit of code is for simulation purposes and will be explained in “Ascii state name” below.
6.5 Output using onehot
The onehot encoding is based on Steve Golson’s paper [2]. This technique doesn’t really allow for the “default_state_is_x” behavior, so this attribute is ignored.
fizzim.pl –enc onehot < cliff.fzm > cliff.v
Skipping over the module statement, here’s what our “state encoding” looks like:
// state bits
parameter
IDLE = 0,
DLY = 2,
DONE = 1,
READ = 3;
reg [3:0] state;
reg [3:0] nextstate;
Recall that onehot encoding uses one bit for each state. So, 4 states means 4 bits. The parameter refers to the bit position in the vector. So, when the FSM is in state DONE, for example, only bit 1 will be set (the state vector will be 0010).
The combinational always block looks equally bizarre:
// comb always block
always @* begin
nextstate = 4'b0000;
case (1) // synopsys
parallel_case full_case
state[IDLE]: begin
if (go) begin
nextstate[READ] = 1'b1;
end
else begin
nextstate[IDLE] = 1'b1;
end
end
state[DLY]: begin
if (ws) begin
nextstate[READ] = 1'b1;
end
else begin
nextstate[DONE] = 1'b1;
end
end
state[DONE]: begin
begin
nextstate[IDLE] = 1'b1;
end
end
state[READ]: begin
begin
nextstate[DLY] = 1'b1;
end
end
endcase
end
The “case (1)… state[IDLE]” gets translated to mean “when the IDLE bit of the state vector (0) is a 1”. The nextstate is calculated by first setting it to all zeros, then turning on the bit that represents the next state.
Note that, because of the way it is coded (set to all zeros, then set the bit), the issue of defaulting the value doesn’t not arise for onehot. If something goes wrong, you get an illegal all-zeros state which you never get out of.
The sequential always block looks like this:
// sequential always block
always @(posedge clk
or negedge rst_n) begin
if (!rst_n)
state <= 4'b0001 << IDLE;
else
state <= nextstate;
end
It seems simpler to just set state to zero, then set state[IDLE] to one, but this format was used to stay as close as possible to Steve Golson’s code in [3]. His “1 << IDLE” got changed to have the full vector size to work around a bug in one of the Verilog simulators.
Note that there is now a third always block. It is a sequential always block, and creates the registered outputs. This is necessary because, unlike heros encoding, there is no way to use the state bits for registered outputs. The block looks at the value of “nextstate” and sets ds and rd accordingly:
// datapath sequential always block
always @(posedge clk
or negedge rst_n) begin
if (!rst_n) begin
ds <= 0;
rd <= 0;
end
else begin
case (1)
nextstate[IDLE]: begin
ds <= 0;
rd <= 0;
end
nextstate[DLY]: begin
ds <= 0;
rd <= 1;
end
nextstate[DONE]: begin
ds <= 1;
rd <= 0;
end
nextstate[READ]: begin
ds <= 0;
rd <= 1;
end
endcase
end
end
This structure is also used for registered datapath (“regdp”) outputs (coming soon).
6.6 Ascii state name
Notice that both heros and onehot had some extra simulation code at the end. The code for onehot looks like this:
// This code allows you to
see state names in simulation
`ifndef SYNTHESIS
reg [31:0] statename;
always @* begin
case (1)
state[IDLE]:
statename = "IDLE";
state[DLY]:
statename = "DLY";
state[DONE]:
statename = "DONE";
state[READ]:
statename = "READ";
default:
statename = "XXXX";
endcase
end
`endif
This code allows the designer to see the ascii state name in simulation (set the data type to ascii in your waveform viewer), but does not affect synthesis. The “`ifndef SYNTHESIS/`endif” replaces the old “//synopsys translate on/off” syntax for making this simulation-specific (thanks to Cliff Cummings for pointing this out).
Equivalent code is generated for heros.
// This code allows you to see state names in simulation
`ifndef SYNTHESIS
reg [31:0] statename;
always @* begin
case (state)
IDLE:
statename = "IDLE";
DLY:
statename = "DLY";
DONE:
statename = "DONE";
READ:
statename = "READ";
default:
statename = "XXXX";
endcase
end
`endif
Here’s an example of what this looks like:
This can be turned off by specifying the “-nosimcode” option on fizzim.pl.
6.7 (Un)Displaying the attributes table
Notice that most of the examples so far have had the attributes table to the left of the state machine. This is a handy feature, but you don’t have to use it. To turn it off, do “File > Preferences” and uncheck the “Table Visible” box.
Alternatively, you can move the table to another (or its own) page. See the section on multiple pages.
7 Mealy outputs
Combinational outputs (Mealy outputs) are also supported. They are distinguished from sequential outputs by setting the type field to “comb”.
A Mealy output is defined as an output which is dependent on both the state and the inputs. There are two ways to describe a Mealy output. One way, which derives directly from the definition, is to specify the combinational equation that describes the output for each state. The other way is to specify the combinational equation that describes the output on each transition. Fizzim supports either style.
Let’s add a Mealy output to Cliff’s state machine using the on-states method.
7.1 Mealy outputs assigned in states
Supposed we wanted to create an output that would toggle if “go” was asserted during state “DLY”? This is just a comb output whose equation is “go” during the DLY state, and 0 at all other times.
Back to Cliff Classic. Start by creating the new output “go_missed”. Go to the Global Attributes > Outputs tab and add “go_missed” . Set the type to “comb” and the default value to 0.
Now edit the DLY state to change the equation to “go”.
The result looks like this:
Notice the go_missed output shows up on each state bubble with an “=” instead of a “<=”, because it is of type “comb”.
Re-run the backend, and the new output is added as type “reg”:
module cliff_classic
(
output wire ds,
output reg go_missed,
output wire rd,
input wire clk,
input wire go,
input wire rst_n,
input wire ws
);
That seems a bit counter-intuitive for a comb output, but recall that “reg” in Verilog doesn’t necessarily imply a physical register. It’s type reg because it will be assigned in the combinational always block, which now looks like this:
// comb always block
always @* begin
nextstate = 3'bxxx; // default to x because default_state_is_x is set
go_missed = go_missed; // default to
hold value to avoid latch inference
case (state)
IDLE: begin
go_missed = 0;
if (go) begin
nextstate = READ;
end
else begin
nextstate = IDLE;
end
